Foam Fenders Properties


Construction Features

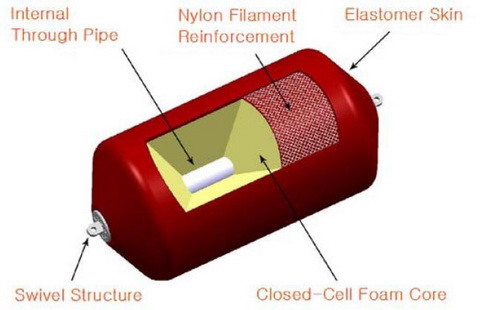

Foam Filled Fender Construction1. Closed-Cell Foam Core --- A heat laminated 100% closed-cell and resilient foam core that is high energy absorbing, with a low reaction force and cannot be ruptured.

2. Filament Reinforcement --- The fender skin is reinforced with continuous nylon filaments for maximum strength, toughness and durability.

3. Polyurethane Skin
--- The polyurethane elastomer is spray applied. This creates a high quality and homogeneous skin matrix combining extreme wear resistance with non-marking properties and the option of high visibility colors.

PE Foam Core Reinforcement Filament Polyurethane Elastomer
Proterty Standard Property Standard Property Standard
Density 58-70 kg/m3 Material 2520 denier Hardness 75~95 Shore A
Tensile Strength 414 kN/m2 Tensile Strength 230 N Tensile Strength > 13.8 Mpa
Elongation at Break 120% Elongation at Break 16% Elongation at Break > 300%
Compressive Strength 140 kN/m2 Helix Angle 45~60 degrees Tear Strength > 32 kN/m
Water Absorption < 1 kg/m2 Filament Spacing < 4 mm Flexural Life > 10000 cycle
Working Temperature –30 to +70 Abrasion Resistance > 100 NBS
