Chains and Accessories
Chain system
Super Cell, Super Cone, Π and Leg Rubber Fenders need the Chain System to support heavy components or to control how the fender deflects and shears during impact. Open link or stud link chains are commonly used and these can be supplied in several different strength grades. Compatible accessories like shackles, brackets and U-anchors are also available. The nominal breaking load (NBL) of these items is matched to chains of similar capacity. Chains and accessories are supplied galvanized as standard. Chain brackets may also be supplied in an optional painted finish.



Chain System:

This Chain System can be used for Super Cone Rubber Fenders, Super Cell Rubber Fenders, π and Leg Rubber Fenders.

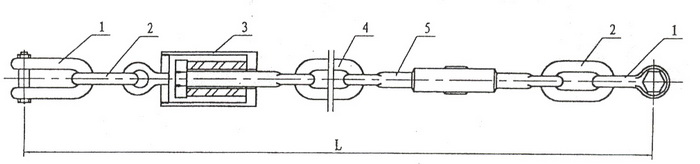

Chain system
1. End Shackles  2. End Ring  3. Rubber Spring  4. Chains  5. Srew Buckle
Chain system

CHAINS

Size

3.0D Links

3.5D Links

4.0D Links

5.0D Links

SL2

oC

L

W

Weight

L

W

Weight

W

Weight

L

W

Weight

MBL

mm

mm

mm

kg/link

mm

mm

kg/link

mm

mm

kg/link

mm

mm

kg/link

kN

18

54

23

0.4

63

25

0.4

72

25

0.5

90

25

0.5

192

20

60

26

0.5

70

28

0.6

80

28

0.6

100

28

0.7

264

22

66

29

0.7

77

31

0.8

88

31

0.8

110

31

1

304

24

72

31

0.9

84

34

1

96

34

1.1

120

34

1.3

362

26

78

34

1.2

91

36

1.3

104

36

1.4

130

36

1.6

424

28

84

36

1.4

98

39

1.6

112

39

1.7

140

39

2

492

30

90

39

1.8

105

42

2

120

42

2.1

150

42

2.5

566

32

96

42

2.2

112

45

2.4

128

45

2.6

160

45

3

644

34

102

44

2.6

119

48

2.9

136

48

3.1

170

48

3.6

726

36

108

47

3.1

126

50

3.4

144

50

3.7

180

50

4.2

814

38

114

49

3.6

133

53

4

152

53

4.3

190

53

5

900

40

120

52

4.2

140

56

4.6

160

56

5

200

56

5.8

1010

42

126

55

4.9

147

59

5.4

168

59

5.8

210

59

6.8

1110

44

132

57

5.6

154

62

6.2

172

62

6.7

220

62

7.8

1220

46

138

60

6.4

161

64

7.1

184

64

7.7

230

64

8.9

1330

48

144

62

7.3

168

67

8

192

67

8.7

240

67

10.1

1450

50

150

65

8.2

175

70

9.1

200

70

9.8

250

70

11.4

1570

shackles

SHACKLES

-

D-Type

Bow Type

oC

oD

E

oF

G

oH

MBL

Weight

E

Of

G

oH

oJ

MBL

Weight

mm

mm

mm

mm

mm

mm

kN

kg/each

mm

mm

mm

mm

mm

kN

kg/each

16

16

51

20

27

40

128

0.7

60

20

27

40

42

128

0.7

18

19

30

22

32

44

190

1

71

22

32

44

51

190

1.3

19-20

22

71

25

37

50

255

1.5

84

25

37

50

58

255

1.7

22

25

81

30

43

60

335

2.6

95

30

43

60

68

335

2.8

24

28

90

32

46

64

375

3.4

108

32

46

64

74

375

3.8

26

32

100

35

52

70

470

4.8

119

35

52

70

83

470

5

28

35

111

38

57

76

530

6.2

132

38

57

76

89

530

7.3

30-32

38

122

42

60

84

670

7.6

146

42

60

84

98

670

7.8

34-38

44

146

50

73

100

980

13

178

50

73

100

110

980

14

40-46

50

171

56

83

112

1375

18.2

197

56

83

112

120

1375

20

48-50

56

180

65

95

130

1770

27.8

235

65

95

130

130

1770

30

-

64

203

70

105

140

2160

35

267

70

105

140

150

2160

41

-

76

216

82

127

164

3340

60

330

82

127

164

170

3340

65.5

-

89

266

95

133

190

4710

93

371

95

133

190

200

4710

110

-

102

305

108

140

216

5890

145

371

108

140

216

240

5890

153

-

110

360

121

184

242

7848

180

394

121

184

242

280

7848

210

-

120

390

130

216

260

9810

225

508

130

216

260

305

9810

260




Anchor Bolts and Spacer for Fender Body with Port

These accessories can be used for
Super Cone Rubber Fenders, Super Cell Rubber Fenders, Super Arch Rubber Fenders, Wing Type Rubber Fenders, π and Leg Rubber Fenders.

Anchor and boltsAnchor and Bolts

Type

Bolt (mm)

Spacer (mm)

Anchor Nut (mm)

D

J

S

H

m

n

N

U

V

Q

P

R

d

e

a

b

L

T

G

M24

24

70

55

18

74

80

14

4.5

29

42

33

12

24

36

75

100

260

6

70

M30

30

75

60

19

65

110

19.5

4.5

34

72

33

15

30

38

75

105

330

9

75

M33

33

85

70

22

70

117

24

4.5

36

77

35

15

33

42

85

120

360

9

80

M36

36

90

75

23

85

106

24

6

40

60

40

15

36

44

85

125

440

12

90

M39

39

95

75

26

80

148

26

6

43

102

40

25

39

50

85

125

430

9

85

M42

42

110

90

26

127

145

25

6

49

83

56

30

42

60

95

140

420

12

110

M45

45

110

90

30

90

153

31

6

49

102

45

30

45

60

95

140

500

12

110

M48

48

110

100

30

139

165

28

6

52

98

61

30

48

65

95

145

480

12

115

M52

52

135

95

35

100

158

31

6

56

102

50

30

52

70

100

150

570

12

120

M56

56

150

110

35

110

165

38

8

63

102

55

30

56

75

105

165

620

16

125

M64

64

150

120

40

195

266

32

8

70

134

124

40

64

80

125

190

640

16

130

M76

76

190

145

50

140

207

55

10

84

127

70

50

76

95

135

210

800

19

155



U Anchor

Type

d

R

L1

L

A

T

K

G

Φ40

40

60

220

440

60

25

25

100

Φ50

50

75

250

650

70

30

30

120

Φ60

60

75

250

750

70

30

30

120

Φ70

70

90

250

1100

70

30

30

120

Φ80

80

120

300

1300

70

30

30

160

Φ90

90

130

320

1500

80

30

30

180






Bolts, Nuts and Spacer for the Frontal Panel with Fender Body

These accessories can be used for Super Cone Rubber Fenders, Super Cell Rubber Fenders, π and Leg Rubber Fenders.

Type

Bolt (mm)

Nut

Spacer (mm)

D

K

M

H

T

B

L1

N

t

V

r

F

R

M30

30

90

55

19

24

65

110

20

4.5

34

2.5

33

15

M33

33

100

60

22

28

70

117

24

4.5

36

3

35

15

M39

39

115

65

26

32

80

148

26

6

43

3

40

25

M42

42

125

70

26

32

85

151

28

6

49

3

43

25

M45

45

130

75

30

38

90

153

31

6

49

3

45

30

M52

52

145

85

35

45

100

158

31

6

56

3

50

30

M56

56

160

90

35

45

110

165

38

8

63

3

55

30

M64

64

170

95

40

51

120

195

43

8

70

4

60

40

M76

76

215

110

50

64

140

207

55

10

84

5

70

50


*
The actual sizes maybe different with the above size.
