D Type Marine Fenders

D type Rubber Fenders
D type rubber fenders
Small size of ruber fender bottom and a line of erection bolt is particularly suitable for frame type wharf and shore protection of wharf. It is easy to install and replace. Energy absorption of rubber fender per ton is high, but reaction force is relatively too high (Compress rubber fender has the lowest energy absorption for reaction force per unit.)

Features:

•  With the reasonable reaction force, its Energy Absorption is higher than Cylindrical Rubber Fenders
•  easy to install and replace
•  Applicable for frame dock and ships due to its smaller bottom width

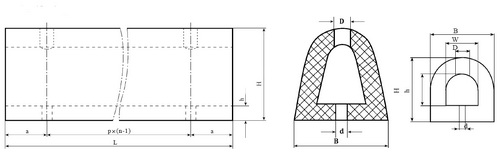

Dimension and Performance:
D type rubber fenders

Type Specification (mm) Performance
H B L Holes Q C h D d R.F (KN) E.A (KJ)
D200×200×850 200 200 850 3 325 100 40 60 25 125.0 4.3
D200×200×900 200 200 900 2 600 150 40 60 25 132.3 4.6
D200×200×1000 200 200 1000 2 600 200 40 60 25 147.0 5.1
D200×200×1500 200 200 1500 3 600 150 40 60 25 220.0 7.7
D200×200×2000 200 200 2000 4 500 250 40 60 25 294.0 10.2
D300×300×850 300 300 850 3 325 100 40 65 32 255.0 10.0
D300×300×900 300 300 900 2 600 150 40 65 32 265.0 10.6
D300×300×1000 300 300 1000 3 350 150 40 65 32 294.3 11.8
D300×300×1500 300 300 1500 4 400 150 40 65 32 441.5 16.7
D300×300×2000 300 300 2000 4 500 250 40 65 32 588.6 23.6
D300×360×850 300 360 850 3 325 100 40 65 32 280.5 11.5
D300×360×1000 300 360 1000 3 350 150 40 65 32 323.7 13.7
D300×360×1500 300 360 1500 4 400 150 40 65 32 480.7 19.6
D400×400×850 400 400 850 3 325 100 55 65 32 325.2 16.7
D400×400×1000 400 400 1000 3 350 150 55 65 32 382.6 19.6
D400×400×1500 400 400 1500 3 400 150 55 65 32 573.9 29.4
D400×400×2000 400 400 2000 4 600 150 55 65 32 765.2 58.8
D500×500×850 500 500 850 3 325 100 90 97 45 383.6 26.7
D500×500×1000 500 500 1000 3 350 150 90 97 45 451.3 31.4
D500×500×1500 500 500 1500 3 400 150 90 97 45 686.7 47.1
D500×500×2000 500 500 1500 4 600 150 90 97 45 902.6 62.8
1. The design compressive deflection is 50%
2. Tolerance is +/-10%
3. The performance is 1000mm length

Installation:


The representative installation material of D type rubber fender system include Bolt, ②Nut, ③Pressing Board, ④Wahser
For the detailed specification, please feel free to contact with us.
