Leg Rubber Fenders

Leg Rubber FendersLeg Rubber Fenders are modular units with an advanced geometry that combines high performance with an adaptable design. Leg rubber fenders system is the pair(s) Leg Fenders with steel panels and UHMW-PE face pads. Leg rubber fenders can be assembled with many methods, vertical or horizontal mounting of units ensures optimum energy and low reaction. A small footprint makes Leg rubber fenders perfect where fixing area is restricted. These systems are widely used for where larger vessels berth – including Container Quays, Tanker Terminals, Bulk Cargo and RoRo berths. The versatility of Leg rubber fenders makes them suitable for almost all applications.

Features:

•  Modular design
•  High efficiency with excellent shear resistance
•  Wide range of sizes suit most of application
•  High energy absorption and low reaction force
•  Easy to install

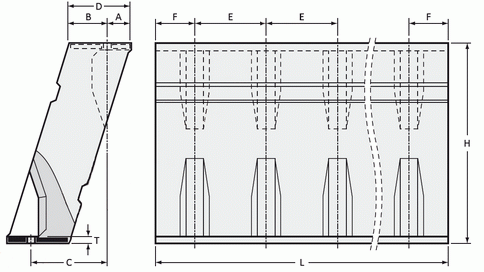

Dimension and Performance:
Leg Rubber Fenders

Type

Specification (mm)

P1

P0

H

A

B

C

D

E

F

T

R

E

R

E

500H

500

87

71

142

158

500

250

20

265

61

186

43

600H

600

87

101

200

188

500

250

20

320

88

224

62

750H

750

118

117

230

235

500

250

26

401

137

281

96

800H

800

129

121

240

250

500

250

26

428

157

299

110

1000H

1000

162

160

310

322

500

250

31

534

245

374

172

1250H

1250

196

204

390

400

500

250

36

667

383

467

268

1450H

1450

228

226

454

454

500

250

41

775

516

543

361

1600H

1600

257

243

480

500

500

250

50

854

628

598

440

Note: 1. Tolerance: +/-10%; 2. R-Reaction Force (KN), E-Energy Absorption (kNm)
3. P1=High reaction force type; P0=Standard reaction force

Installation:

>>
Fixing Accessories
Leg Rubber Fenders

Type

Bolt (mm)

Spacer (mm)

Anchor Nut (mm)

D

k

M

H

d2

d1

h

d

e

a

b

L

G

T

500H

30

85

70

19

56

33

4

30

42

75

120

360

10

80

600H

30

85

70

19

56

33

4

30

42

75

120

360

10

80

750H

36

90

75

23

66

39

5

36

44

85

125

440

12

90

800H

36

90

75

23

66

39

5

36

44

85

125

440

12

90

1000H

42

100

80

26

78

45

6

42

60

85

130

500

12

100

1250H

48

120

95

30

92

52

8

48

65

100

150

570

12

115

1450H

48

120

95

30

92

52

8

48

65

100

150

570

12

115

1600H

56

135

110

35

105

62

10

56

71

105

165

620

16

120


>>
Panel AccessoriesLeg Rubber Fenders

Type

Bolt (mm)

Spacer (mm)

Nut (mm)

D

J

S

H

d2

d1

h

T

500H

30

90

45

19

33

56

4

24

600H

30

90

45

19

33

56

4

24

750H

36

110

50

23

39

66

5

28

800H

36

110

60

23

39

66

5

28

1000H

42

125

65

26

45

78

6

34

1250H

48

135

80

30

52

92

8

34

1450H

48

135

80

30

52

92

8

38

1600H

56

160

90

35

62

105

10

45
