UHMW-PE Frontal Pad
UHMW-PE

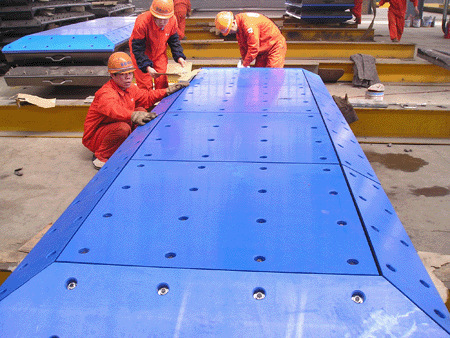

UHMW-PE (Ultra High Molecular Weight Polyethylene) frontal Pad provide the higher abrasion resistance with low-friction properties, manufactured and machined in sizes to suit the steel frontal panel. They are fixed to the panel generally with Stainless Steel studs that are welded to the skin of the steel panel.

Our UHMW-PE is strongest and toughest for ma
rine application. The UHMW-PE normally arrives on site pre-fitted to the steel frontal panel. UHMW-PE is available in many colors, such as black, yellow, blue, red or orange and so on.

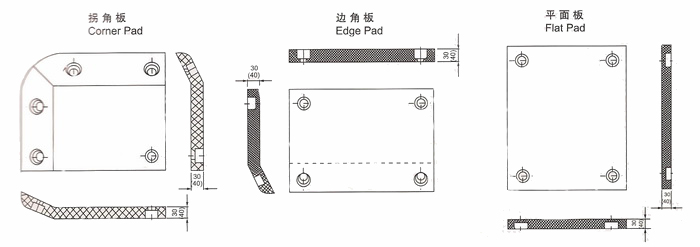

There are three types of facing pad: Corner Pad, Edge Pad, Flat Pad.



UHMW-PE

UHMW-PE Physical Properties

Property

Desity

Friction Factor

Yield Strength

Elongation at Break

Tensile strength

Abrasion index

Impact Strength

Shore Hardness

Yield strength

Therinal Deformantion Temperature

Linear Expansion Coefficient

Unit

g/cm3





%

Mpa



kJ/m2

15 sec

N/mm2

K-1

Test Mothod

ISO 1183

DIN 53375

ISO 527

ISO 527

GB 1033

Sand Slurry

ISO 11542

ISO 868

ISO 527

GB1634

DIN 52328

UHMW-PE

0.93~0.95

0.10~0.17

17

> 50

 24.5

100

210

60

17

80

~2x10-4


UHMW-PE face pads UHMW-PE face pads
