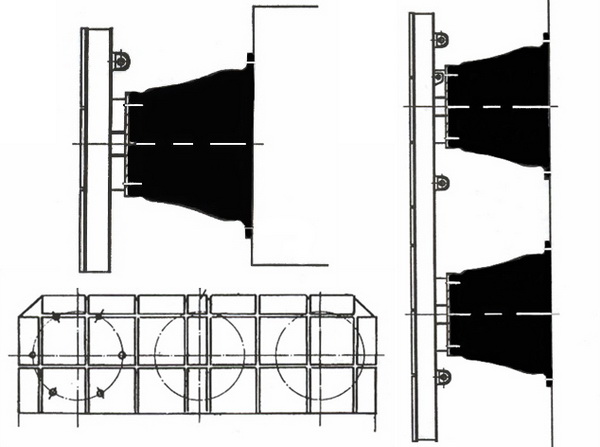

Frontal Panels (Frames) are used for Super Cell Rubber Fender, Super Cone Rubber Fender, π type and Leg Rubber Fenders and other type. It’s the necessary part of these whole fendering system. It's the necessary part of these fendering system. This frontal Panels are used to distribute the reaction forces from the rubber units into the ship's hull.

Frontal Panels are generally of fabricated steel composite beam construction. Most fender panels are "closed box" and "open box panels" structures. Therein, closed box structure, which is the most popular type, is comprised of front and back plates plus a series of vertical and horizontal stiffening members.

The design of each Frontal Panel is used for the special individual berth. The design will depend on the composite factors, include the type of quay and vessel, berthing mode, fender's arrangement, hydrographic condition, and so on. Meanwhile, the final size of frontal panel also should consider the standard size of UHMW-PE in order to save cost.

The forms for the Frontal Panel arrangement: Horizontal Arrangement, Vertical
Arrangement, and Combination arranement.


Frontal Panel


To get more information about the Calculation and Design of the Frontal Panel, please visit
