Roller Fenders

Roller Fenders

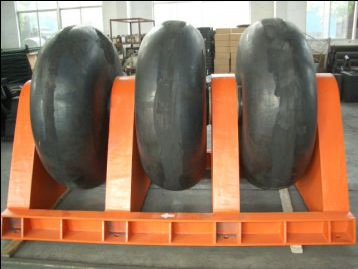

Roller FendersRoller Fenders are commonly used on the berth corners and dock entrances, also widely installed along the walls of dry docks and other restricted channels to help guide vessels and prevent hull damage.

The wheel(s) is mounted on a fixed axle supported by a special frame. And wheel(s) can be rotated freely when the ship hull contact / slid the along with the wheels. Roller Fenders combine reasonable energy absorption with low reaction at all berthing angles.

Roller fenders is low maintenance frame design and easy installation.

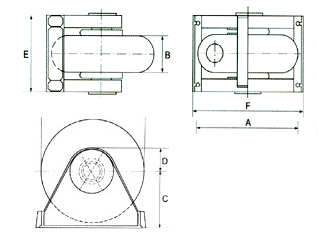

Dimension and Type:

Roller FendersD1 Type:

SIZE

A

B

C

D

E

F

Max.
Flexibility
(mm)

Max.
Burthen
(T)

Energy
Absorption
(T-m)

D1-060-20

600

200

320

110

420

695

125

7

0.25

D1-075-25

750

250

400

140

510

870

157

11

0.48

D1-090-30

900

300

480

165

610

1040

184

15

0.88

D1-120-40

1200

400

640

220

820

1380

260

27

1.96

D1-150-50

1500

500

800

275

1010

1740

325

43

3.84

D1-180-60

1800

600

960

330

1210

2080

390

62

6.63

D1-210-70

2100

700

1155

385

1410

2440

455

84

10.7

D1-240-80

2400

800

1280

440

1610

2770

520

110

15.7


Roller FendersD2 Type:

SIZE

A

B

C

D

E

F

Max.
Flexibility
(mm)

Max.
Burthen
(T)

Energy
Absorption
(T-m)

D2-060-20

600

200

320

110

770

695

125

14

0.5

D2-075-25

750

250

400

140

935

870

157

21

1

D2-090-30

900

300

480

165

1120

1040

184

31

1.7

D2-120-40

1200

400

640

220

1500

1380

260

55

3.9

D2-150-50

1500

500

800

275

1850

1740

325

86

7.7

D2-180-60

1800

600

960

330

2215

2080

390

124

13.3

D2-210-70

2100

700

1155

385

2590

2440

455

169

21

D2-240-80

2400

800

1280

440

2950

2770

520

220

32


D3 Type:Roller Fenders

SIZE

A

B

C

D

E

F

Max.
Flexibility
(mm)

Max.
Burthen
(T)

Energy
 Absorption
(T-m)

D3-060-20

600

200

320

110

1120

695

125

21

0.7

D3-075-25

750

250

400

140

1360

870

157

32

1.4

D3-090-30

900

300

480

165

1630

1040

184

46

2.5

D3-120-40

1200

400

640

220

2180

1380

260

82

6

D3-150-50

1500

500

800

275

2690

1740

325

128

11

D3-180-60

1800

600

960

330

3220

2080

390

185

20

D3-210-70

2100

700

1155

385

3770

2440

455

252

32

D3-240-80

2400

800

1280

440

4290

2770

520

329

47
