Cylindrical Rubber Fender is one kind very popular fender because it’s simple to install and operate, versatile and highly cost effective. Cylindrical fenders’ simple hollow cylinder design can be produced in almost any length and diameter combination to meet specific performance and space requirements. The wide range of available sizes means Cylindrical fenders can be closely matched to each application, and suitable for the berthing of both large and small vessels. Its installation is various– horizontally, vertically or diagonally and can also be adapted to suit wharf corners.
Features:
• Simple and economical design,
• easy to install
• Choice of mounting systems to suit different structures and applications
• Wide range of available size
• PIANC tested and certified
Dimension and Performnace:
| Unit:mm | |||||
| Dimension (mm) | Reaction Force (KN) | Energy Absorption (kNm) | |||

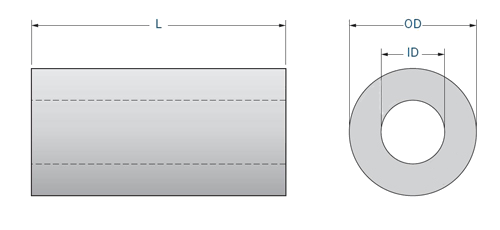

| OD | ID | Standard | High Reaction | Standard | High Reaction |
| 150 | 75 | 44.1 | 72.6 | 1.5 | 2.3 |
| 200 | 100 | 59.8 | 95.1 | 2.6 | 4.2 |
| 250 | 125 | 74.6 | 120.0 | 4.1 | 6.5 |
| 300 | 150 | 89.3 | 143.2 | 5.9 | 9.4 |
| 400 | 200 | 118.7 | 191.0 | 10.4 | 16.6 |
| 500 | 250 | 148.1 | 239.0 | 16.1 | 26.2 |
| 600 | 300 | 178.5 | 286.0 | 23.5 | 37.3 |
| 700 | 350 | 208.0 | 334.0 | 31.4 | 50.0 |
| 800 | 400 | 237.4 | 382.5 | 41.2 | 65.7 |
| 900 | 450 | 267.8 | 430.0 | 52.0 | 84.3 |
| 1000 | 500 | 297.2 | 479.0 | 63.8 | 103.0 |
| 1100 | 550 | 331.0 | 530.5 | 77.2 | 124.3 |
| 1200 | 600 | 363.0 | 585.0 | 95.2 | 137.0 |
| 1300 | 650 | 392.0 | 631.8 | 108.0 | 173.9 |
| 1400 | 700 | 421.8 | 676.0 | 127.5 | 205.3 |
| 1500 | 750 | 451.0 | 724.0 | 160.0 | 241.5 |
| 1600 | 800 | 481.0 | 775.0 | 173.5 | 276.4 |
| 1. The design compressive deflection is 50%. | |||||
| 2. Tolerance is +/-10%. | |||||
| 3. The performance is for 1000mm length | |||||
Installation:

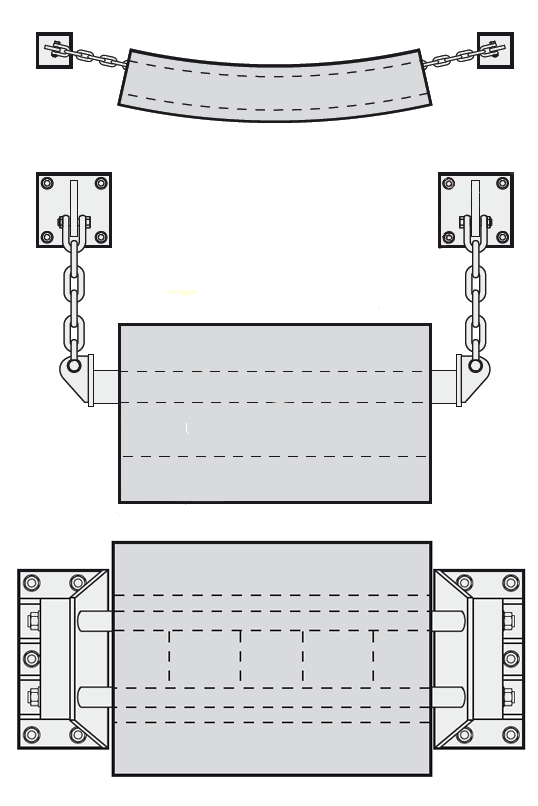

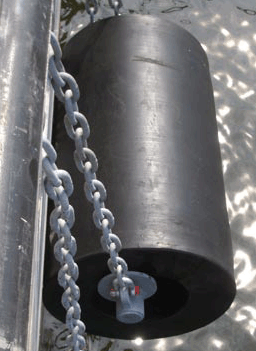

Cylindrical Rubber Fenders can be installed by many ways as per the different dimensions, such suspended with chain, central bar, or ladder brackets.
| Specification | Anchor | Steel Bar | Shackle | U Anchor | |
| 150 x 75 x L1~3m | 13 ~ 19 | 20 ~ 35 | 13 ~ 19 | 25 ~ 35 | |
| 300 x 150 x L1~3m | 16 ~ 26 | 30 ~ 45 | 16 ~ 26 | 25 ~ 40 | |
| 500 x 250 x L1~3m | 25 ~ 36 | 45 ~ 60 | 25 ~ 36 | 40 ~ 50 | |
| 600 x 300 x L1~3m | 25 ~ 36 | 45 ~ 60 | 25 ~ 36 | 40 ~ 50 | |
| 800 x 400 x L1~3m | 28 ~ 38 | 75 ~ 90 | 28 ~ 38 | 50 ~ 60 | |
| 1000 x 500 x L1~3m | 28 ~ 38 | 85 ~ 105 | 28 ~ 38 | 55~65 | |
| 1200 x 600 x L1~3m | 30 ~ 40 | 100 ~140 | 30 ~ 40 | 60 ~ 70 | |
| 1400 x 700 xL1~3m | 32 ~ 42 | 105 ~ 150 | 32 ~ 42 | 65 ~ 75 | |
| 1500 x 750 x L1~3m | 32 ~ 42 | 105 ~ 150 | 32 ~ 42 | 65 ~ 75 | |
| 1600 x 800 x L1~3m | 34 ~ 44 | 120 ~ 180 | 34 ~ 44 | 70 ~ 85 | |
